MILLER MANUFACTURING COMPANY

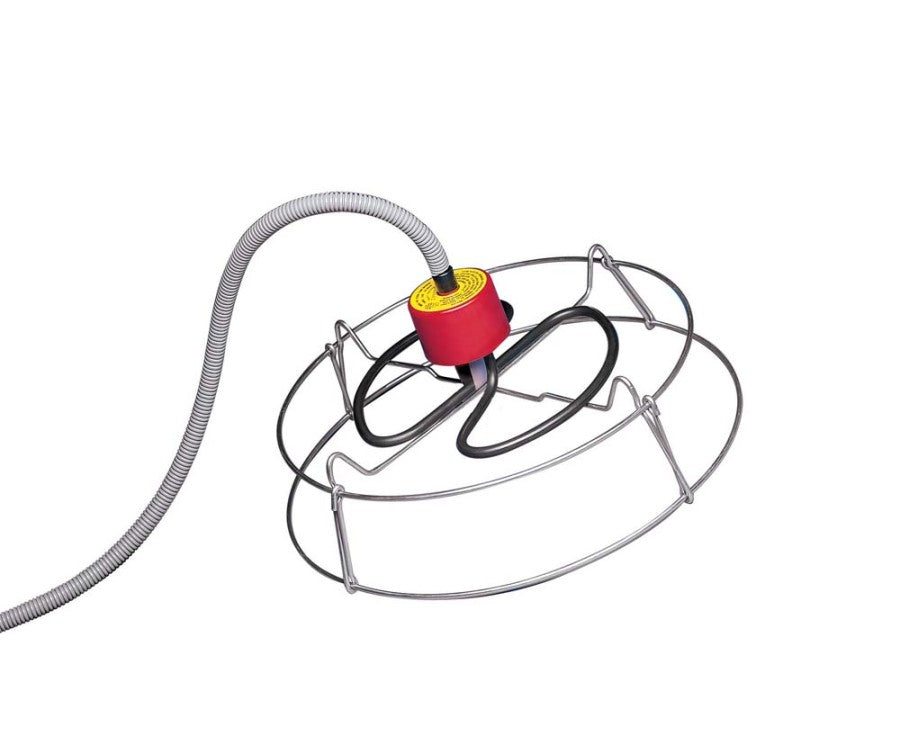

Allied Sinking De-icer with Wire Guard

SKU: PT0160101510

Grey, Red, 1ea/1500 W

$0.50 USD
$0.00 USD $0.50 USD
Sale Sold out

The sinking de-icer operates at the bottom of the tank where it is less likely to be disturbed by livestock, protecting both the equipment and animals. The strong, durable, stainless steel heating element is thermostatically controlled for efficient operation. Rugged and weather-resistant construction handles the elements. That thermostatic control coupled with thermal feedback protects the unit from overheating. The thermostat is positioned above the heating element to ensure safety in low-water conditions. Each de-icer comes complete with a galvanized wire guard for use in plastic tanks.

  • Recommended for use in 100-300 gallons of water.
  • 6-foot cord with durable anti-rub protector.
  • LOCKNDRY compatible.
  • 1500 Watts, 120 Volts, 60 Hz.
  • cULus Listed.
  • One year warranty.

Dimension

  • Product Gross Weight: 1.0000 lb
  • Product Net Weight: 1.0000 lb
  • Product Height: 4.00 in
  • Product Length: 10.00 in
  • Product Width: 10.00 in
  • Recommended For: 100 - 300 gallons of water

Instruction

  • Use Instructions: 1. If the unit is to be used in a non-metallic tank or pond, a Model 88R guard must be attached in order to prevent the heating element from coming in contact with the walls of the tank2. The unit should be placed in a tank or pond with water and then plugged into a Ground Fault Circuit Interrupter3. Some animals particularly horses may try to remove the 15N, 10N and 15A de-icers from the tank. To prevent this, you may wish to run the cord through PVC or galvanized tubing extending over the tank. Be sure to allow slack in the cord to compensate for varying water level.4. The unit is thermostatically controlled so that it will not turn on until the temperature drops to around 40°F. If it is removed from the tank, it will turn on and then shut itself off in 60 seconds, and will continue to cycle on and of.

Safety

  • Safety Listing: UL Listed; CSA Listed
  • Safety Warnings: 1. Have a qualified electrician install a properly grounded receptacle outlet, acceptable for outdoor use and protected from snow and rain, immediately adjacent to the location where the heater will be used2. Route the supply cord and locate the heater so as to be protected from damage (by livestock if using 10N and 15N)3. Do not use extension cords4. Inspect cord before using5. Unplug heater at receptacle outlet when not in use or before removing from tank or pond6. Store heater indoors after winter season7. Model P15N is intended to be used only in ponds for keeping water from freezing during the winter months. This unit has a 15' supply cord which allows the unit to reach the middle of the pond for efficiency reasons. Position the supply cord around plants and other objects in the pond. Any excess cord must be stored and protected from damage.8. Heating element MUST be completely submerged while in use to prevent risk of fire hazard9. Do not tether unit.10. To ensure continued protection against electric shock hazard, connect to properly grounded outlets only. Connect only to a circuit that is protected by a Ground Fault Circuit Interrupter (GFCI). This is a sensitive device that cuts off the electricity if there is any leakage of current. This device may be obtained from any electrician or hardware store.

Specifications

  • Cord Length: 72 Inches
  • Floating or Submersible: Submersible
  • Housing Material: Stainless Steel
  • Power Source: Adapter
  • Thermostat Controller: Yes
  • Wattage: 1500 Watts
