AQUA ULTRAVIOLET

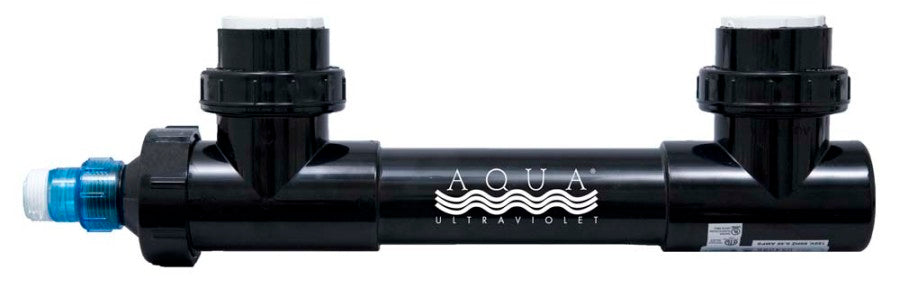

Aqua Ultraviolet Classic UV Sterilizer

SKU: PT0156700069

Black, 1ea/57 W, 3/4 in

$0.50 USD
$0.00 USD $0.50 USD
Sale Sold out

Classic 25 Watt UV's are designed for fresh water features up to 1200 gallons and salt water aquariums up to 150 gallons. The easy to install and service units are plumbed in line and have the longest lamp life on the market, 14 months.

Dimension

  • Product Gross Weight: 7.0000 lb
  • Product Net Weight: 7.0000 lb
  • Product Height: 7.75 in
  • Product Length: 23.63 in
  • Product Width: 5.75 in

Instruction

  • Assembly Instructions: 1. You can use mounting brackets (A40124 that can be purchased from us) or plumber’s straps to attach your unit to a wall or firm surface. Make sure the unit is mounted securely before operating.Caution: Your Aqua Ultraviolet unit is not submersible. If this unit falls into the water, turn main power off and then retrieve it. Do not attempt to use this sterilizer if it has been submerged. Do not operate this unit if it has a damaged cord or plug, if it is malfunctioning or if it has been dropped or been damaged in any manner.2. The UV should be installed after the filter on the return line. This helps ensure that the water is clear of debris and impurities that could inhibit the disinfection process. The UV can be installed before the filter, however, it will take longer to work. Note: You increase the risk of breaking the Quartz Sleeve and Lamp if debris enters the UV unit when installed before your filter.For 3/4” threaded units:a. Locate the barbs included with your unit. Barbs are fitted for either 3⁄4” or 1⁄2” hoseb. The barbs have been Teflon taped for you to prevent leakage. Install barbs, hose and hose clamps. (Hose and hose clamps are not included.)3. Based on your personal plumbing configuration, additional plumbing supplies may be needed.LEAK TEST: Do not install the Lamp or electrical components yet. After all connections have been made, turn on the pump and run for five minutes to check for leaks. a. If there are no leaks, turn pump off and continue installing the lamp For units 8,15, 25, 57 and 114 watt. For 80 watt and 120 240 watt continue to electrical installation. b. If unit leaks turn pump off and continue to trouble shooting leaks

Safety

  • Caution: Do not look at or handle UV Lamps when lit outside of the housing. Considerable Ultraviolet energy is emitted which may produce severe sunburn and/or conjunctivitis. As long as the UV light is in its housing it is 100% safe for humans and fish. Do not use the Aqua Ultraviolet Sterilizer for anything other than its intended use.
  • Safety Warnings: If you are medicating your fish, we recommend shutting down the sterilizer as the UV Radiation may affect the treatment.

Specifications

  • Benefits: 1. UV’s used at higher kill rates will destroy the planktonic food supply for the reef2. UV rated will be the most effective at controlling fish disease. All UV dosages are calculated at the end of lamp life (14 months).
  • Compatible Tank size: 355 Gallons
  • Life of the Lamp: 14 Months
  • Rated Cycle: 60 Hz
  • Recommended Water Flow: 3200 GPH
  • Voltage: 120 Volts
  • Wattage: 57 Watts
