Aquatic Life Floating Suspension Hardware
SKU: PT0145801628White, 1ea
Regular price
$157.68 USD
Regular price
$125.74 USD
Sale price
$157.68 USD
Unit price
per

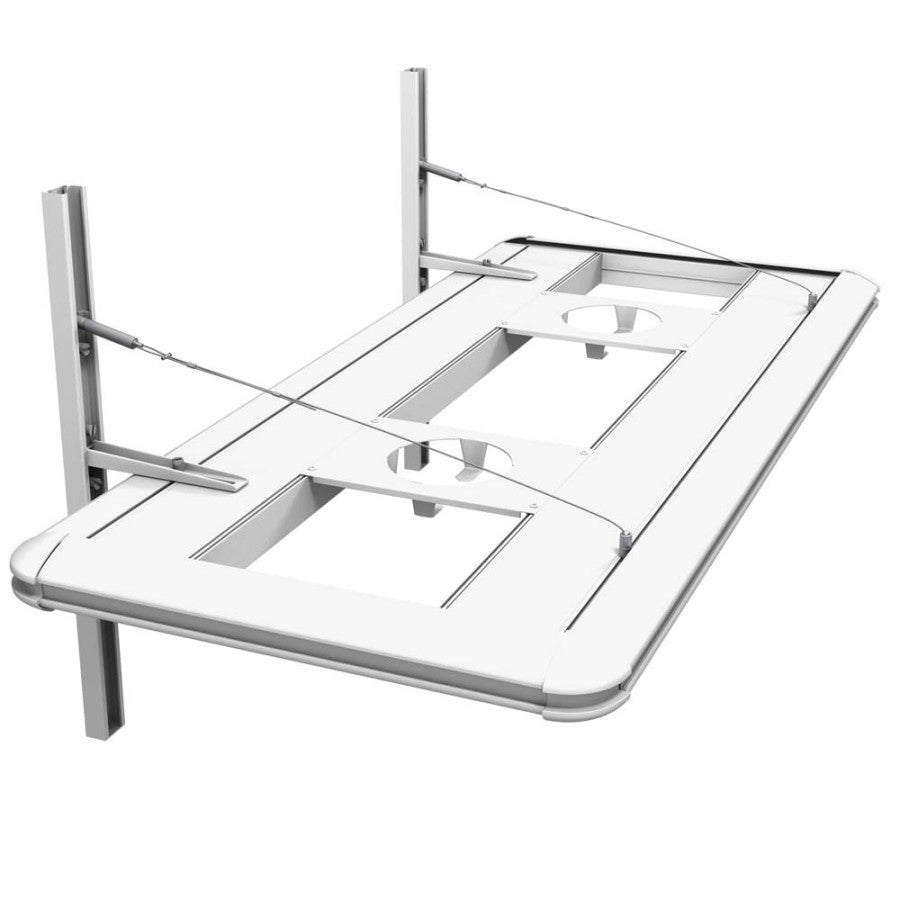

Aquatic Life Floating Suspension Hardware allows the T5HO Hybrid fixture to be mounted on the wall behind the aquarium and then suspend the fixture over the aquarium. Once installed, the fixture can pivot up as well as slide in the vertical tracks to allow easy access to the aquarium for feeding and maintenance. Works with both the T5HO Hybrid and DX18 Hybrid Fixtures. Installation does not require access to the back of the aquarium, so perfect to hanging a fixture over an existing aquarium setup. Sold as a pair, color Black.
Dimension
Dimension
- Product Gross Weight: 2.3500 lb
- Product Net Weight: 2.3500 lb
- Product Height: 1.63 in
- Product Length: 19.50 in
- Product Width: 4.25 in
Instruction
Instruction
- Assembly Instructions: Step 1 - Locate a sturdy surface behind the aquarium, such as wall studs. Place the cantilever wall brackets (A) close to the top of the aquarium frame. Use the level (F) to ensure the bracket is straight. Mark the three holes with a pencil.Step 2 - Secure the bracket to the wall with the mounting screws (G) or other screws designed for the mounting surface.Step 3 - Repeat steps 1 & 2 to mount the second bracket on the other side of the aquarium.Step 4 - Use a flathead screwdriver to loosen the two locking screws on each pivoting bracket and slide the bracket up to the middle of the track. Lock into place temporarily.Step 5 - Thread two wire cable management slides (E) followed by one wire cable screw clamp (D) onto each suspension cable (B).Step 6 - Thread each suspension cable (B) through the eyelet of pivoting arm on the cantilever wall bracket (A), then through the wire screw clamp (D) to form a loop. Tighten the screws to hold the cable in place. Make sure there is plenty of slack in the cable.Step 7 - Place two pieces of the light fixture packaging foam on top of the aquarium frame and use those to support the fixture over the aquarium.Step 8 - Remove the screw from each fixture to bracket connector (C) and slide it into the channel closest to the brackets.Step 9 - Loosen the two locking screws on each pivoting bracket with a flathead screwdriver and slide the bracket to the top of the fixture. Center the fixture over the aquarium and place the bracket over the screw. Reconnect the fixture to bracket connector using the flathead screwdriver.Step 10 - Remove the screws from the end of the suspension cables and slide the screws through the channels closest to the front of the fixture. Attach each suspension cable to the screw in the channel.Step 11 - Loosen the screws on the wire screw clamp with a Phillips screwdriver, and pull the cable tight. Tighten the screws and position the wire cable management slides (E) so they hold the excess cable neatly in place.
Specifications
Specifications
- Compatible With: Aquatic Life Hybrid|G2 Hybrid|DX18 models
