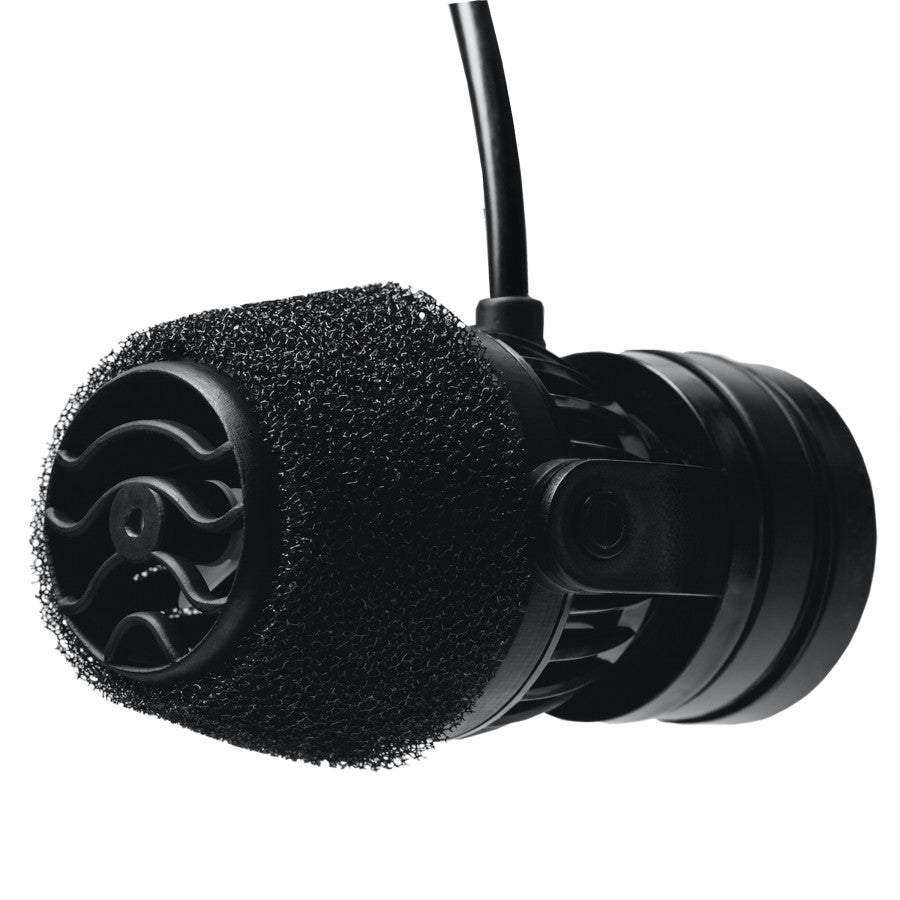

Current USA E-Flux 660 Wave Pump
SKU: PT01610060041ea/132 - 660 GPH

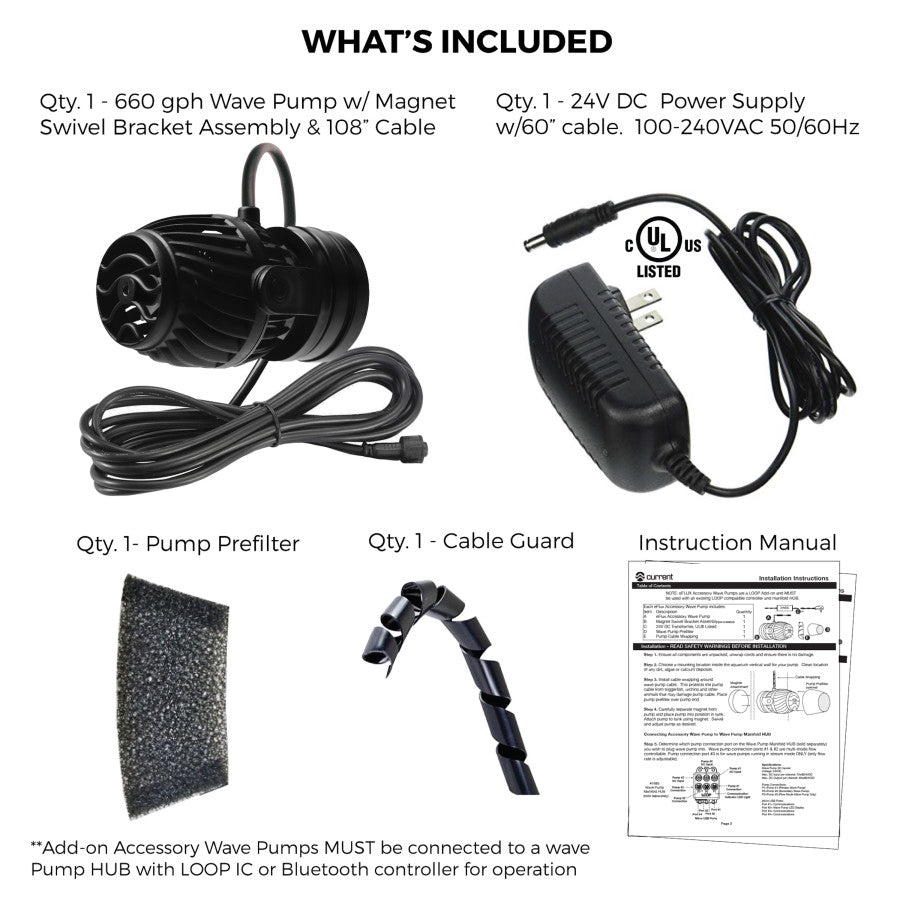

EFlux controllable wave pumps simulate water flow found in nature, providing tank wide circulation, improving water quality and promoting strong coral growth and fish health. Features include: Virtually silent, propeller style wave pump; Wireless control of flow speed and flow pattern; Easy-to-install magnetic swivel bracket assembly; Super safe low DC voltage; LOOP compatible - connects to other LOOP HUBS- Virtually silent, propeller style wave pump- Wireless control of flow speed and flow pattern- Easy magnetic swivel bracket assembly- Super safe, low DC voltage- Adjustable flow from 20% to 100%- Three flow modes: Stream, Surge, Wave- Additional Feed Mode shuts pumps off for feeding- Gyre mode synchronizes two pumps for gyre flow- Connects to any existing Orbit IC LED LOOP system or EFlux Wave Pump Kite Flux DC Controllable Wave Accessory Pumps include a super quiet 1050gph propeller wave pump, magnet attachment assembly with swivel bracket, foam filter, DC power supply and all connecting hardware. **Must be connected to an Orbit IC LED LOOP system or EFlux Wave Pump Kit for operation**
Dimension
Dimension
- Product Gross Weight: 1.3000 lb
- Product Net Weight: 1.3000 lb
- Product Height: 3.70 in
- Product Length: 6.30 in
- Product Width: 5.70 in
Instruction
Instruction
- Use Instructions: Step 1. Remove wave pump and all components from packaging. Remove magnet assembly end of wave pump. Place wave pump in desired location in the aquarium, attach using magnet.Step 2. Mount wave pump HUB and eFlux LED display controller next to each other in a dry location, ensuring drip loop is in place Plug eFlux LED pump display microUSB into Port#2 on wave pump HUB.Step 3. Connect wave pump to wave pump HUB plug “P1”. Plug 24VDC power supply into corresponding DC plug on wave pump HUB. Plug transformer into a GFCI protected outlet ensuring drip loop is in place.Step 4. Connect IR infrared sensor to wave pump HUB into PORT #1. Locate sensor receiver in desired location.Step 5. Remove clear plastic tab from battery compartment on remote.Step 6. Press Main Power key to turn pump on. Pump will now operate in its default setting - Stream/Constant Flow Mode at 100% flow.
Safety
Safety
- Caution: Keep out of reach of children
- Safety Warnings: 1. eFlux wave pumps create a tremendous amount of water flow. Do not install pump where the strong current can harm corals or animals.2. Do not install pump too close to the sand bed where it will not stir/suck the sand.3. Pumps can also produce powerful waves in both wave and surge mode. Ensure your aquarium is designed for wave pumps and ensure pumps are mounted low enough not to push water out of the aquarium.4. Magnet mounting assembly is very powerful. Be cautious not to cause injury to fingers.5. Keep out of reach of children.6. Never place magnets or pump near sensitive electronics, sharp objects or attractive surfaces.7. Never run wave pump dry or out of water.8. Always place spacer between magnets when not in use.9. Always unplug with dry hands for any maintenance or service.10. eFlux wave pumps are 24VDC. Ensure one 24VDC UL transformer is used per wave pump.11. Ensure 24VDC UL® transformer is plugged into a GFCI approved outlet with a drip loop.12. Turn controller OFF and disconnect pump from power before performing any service.13. Ensure eFlux wave pumps and any accessories all have a drip loop installed before plugging into the wave pump manifold HUB.
Specifications
Specifications
- Benefits: 1. Helps prevents “dead zones” around your corals2. Keeps your aquarium cleaner by dislodging detritus3. Keeps corals active and healthy4. Keeps fish active, preventing fatty build-up
- Compatible With: Aquarium
- GPH: 660 Gallons
- Power Source: Transformer
- Voltage: 24 Volts
- Wattage: 5 Watts
- Max Glass Thickness: 0.38 in
