EUGENE G DANNER MANUFACTURING

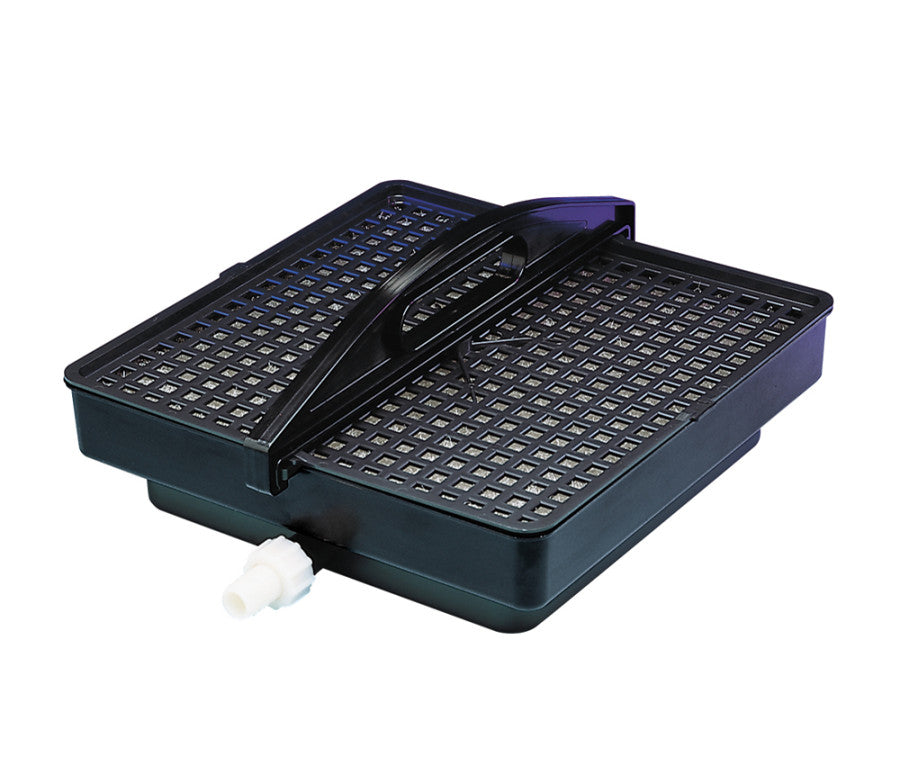

Danner Garden Pond Mechanical Filter

SKU: PT0172502211

Black, 1ea/1000 GPH

$64.82 USD
$51.45 USD $64.82 USD
Sale Sold out

A filter designed to mechanically and biologically filter pond water. Can be used with pumps of 250 to 700 GPH or any pump that will adapt to 3/4 inch intake tubing.

Dimension

  • Product Gross Weight: 2.8000 lb
  • Product Net Weight: 2.8000 lb
  • Product Height: 13.10 in
  • Product Length: 14.00 in
  • Product Width: 3.70 in

Instruction

  • Use Instructions: 1. Separate Filter Frame from Filter Base by lifting edge of BOTTOM finger tab2. Open the Filter Frame by pressing two of the Filter Frame side hooks to release the hooks to pull the two halves apart3. Insert filter pads making certain that they are centered in the filter frame. Note that in the 02205 model, the coarse white polyester pad should be positioned on top of the black carbonized pad to extend the useful life of the carbonized filter. For the 80205 model stack the two foam cartridges. 4. Reattach the Filter Frame halves by aligning the hooks with the openings and pressing until they snap together. If they do not snap, check for interference from the filter pads and adjust pads as needed, pressing them in at edges.5. Snap Filter Frame assembly into Filter Base positioning side tabs away from the Hose connection6. Connect the hose to your water pump. We recommend using a Submersible Pondmaster pump up to 500 GPH capacity.

Safety

  • Caution: Always use a properly grounded outlet. Do not immerse plug in water. Do not reach into water to remove plug. Turn off circuit first. A drip loop should be provided. The drip loop is a loop in the cord below the level of the receptacle or plug that prevents water from traveling along the cord. The National Electric Code re-quires that a ground fault circuit interrupter (GFCI) be installed in the branch circuit supplying fountain or pond equipment. Your dealer can supply GFCI units. Never remove ground pin from plug.
  • Safety Warnings: For your protection always unplug the unit from its power source before installing or servicing. Should the unit appear to be not working do not reach, remove or disassemble unit before you disconnect power. The pump is intended to pump water only. it cannot be used to pump oils, solvents or gasoline.

Specifications

  • Compatible With: Small to medium ponds and containers
  • Filter Types: Biological; Chemical; Mechanical
