EUGENE G DANNER MANUFACTURING

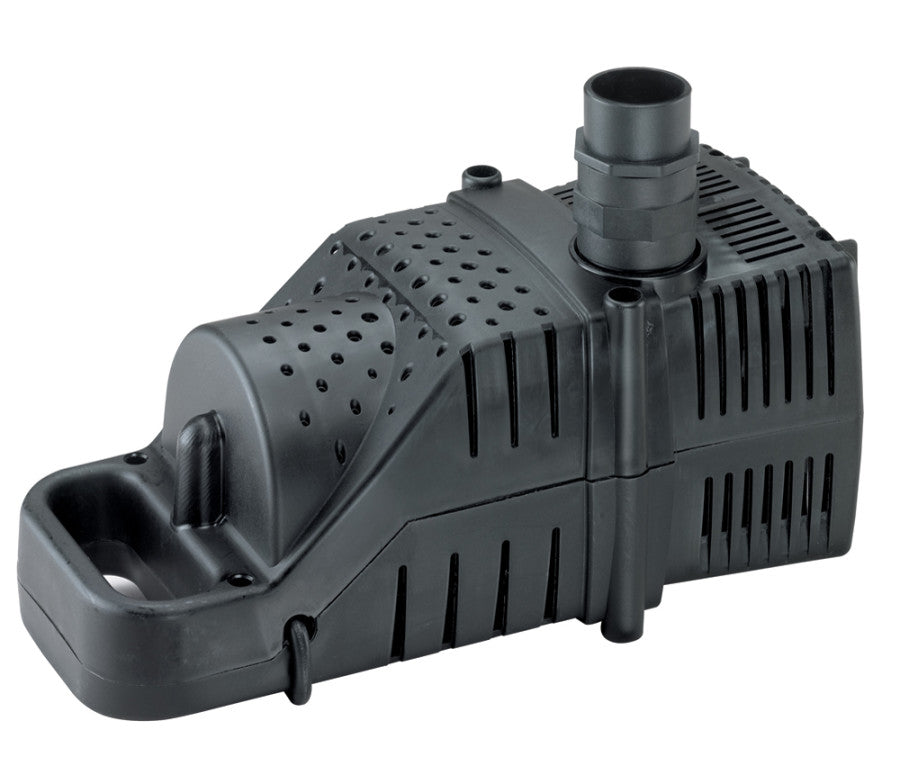

Danner Hy-Drive 4800 Water Pump with Protective Cage

SKU: PT0172502670

Black, 1ea/4800 GPH

$395.14 USD
$315.71 USD $395.14 USD
Sale Sold out

Molded filter cage helps protect pump from pond debris. Hybrid motor design combines the advantages of magnetic drive and direct drive technologies. 4800GPH max flow, 18.5 ft max pumping height, 20 ft power cord.

Dimension

  • Product Gross Weight: 15.3500 lb
  • Product Net Weight: 15.3500 lb
  • Product Height: 7.90 in
  • Product Length: 15.70 in
  • Product Width: 7.70 in

Instruction

  • Use Instructions: Attach hoses using Teflon tape on fittings. This will aid in future disassembly. Make certain that all electrical connections have a GFCI installed. If pump is to be installed submerged, use a separate pump bag or skimmer to help protect the intake from leaves and other debris getting drawn into the impeller. To avoid pulling air into the pump, it should be submerged at least 6 inches (15cm) below the water surface. If pump is used inline, with the cage removed, place it a minimum of 6 inches (15cm) below water level otherwise it will be necessary to prime it. A separate in-line check valve is strongly recommended to prevent loss of prime if power is interrupted.

Safety

  • Caution: Always use a properly grounded outlet. Do not immerse plug in water. Do not reach into water to remove plug. Turn off circuit first. A drip loop should be provided. The drip loop is a loop in the cord below the level of the receptacle or plug that prevents water from traveling along the cord. The National Electric Code re-quires that a ground fault circuit interrupter (GFCI) be installed in the branch circuit supplying fountain or pond equipment. Your dealer can supply GFCI units. Never remove ground pin from plug.
  • Safety Warnings: For your protection always unplug the unit from its power source before installing or servicing pump or when carrying out pond maintenance. Do not reach, remove or disassemble it before you disconnect the power.

Specifications

  • Compatible With: Small ponds
  • Cord Length: 240 Inches
  • Voltage: 120 Volts
  • Wattage: 280 Watts
