RADIO SYSTEMS CORPORATION

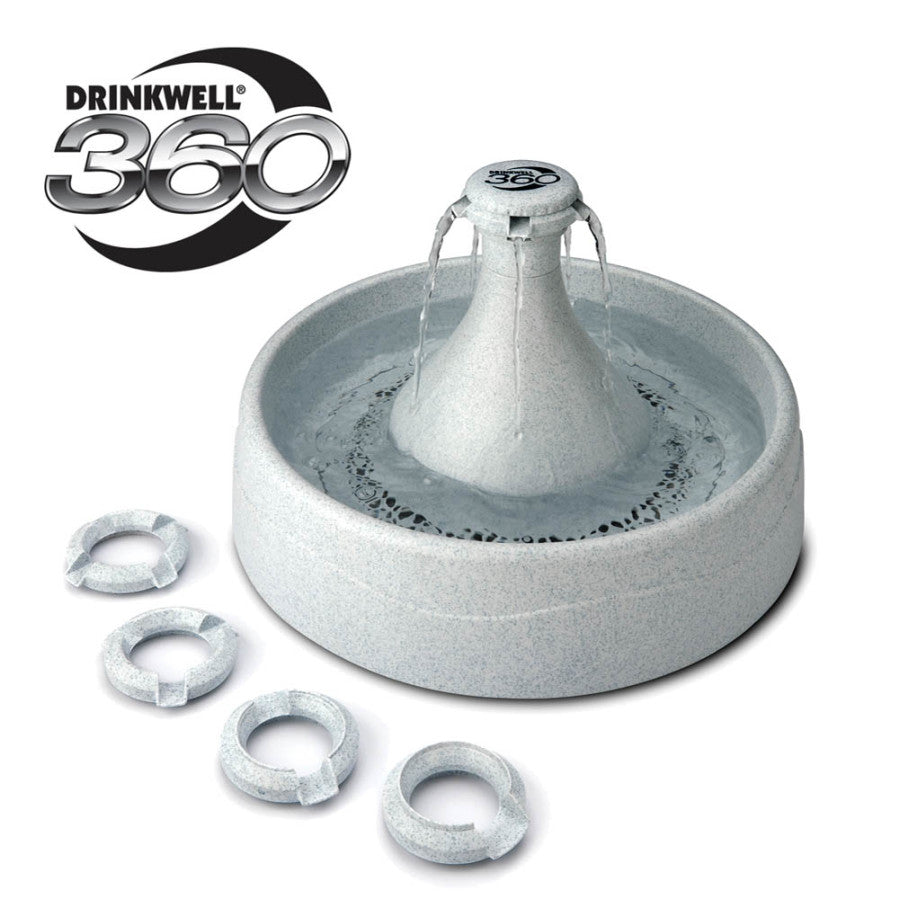

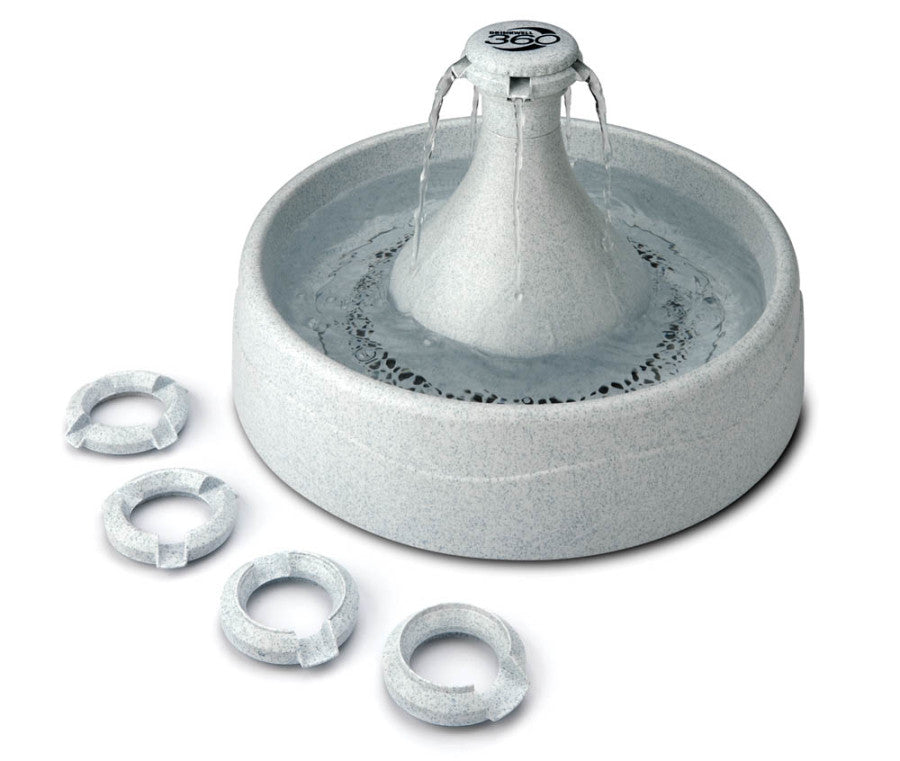

Drinkwell Plastic 360 Pet Fountain 128oz

SKU: PT0117110206

White, 1ea

$0.50 USD
$0.00 USD $0.50 USD
Sale Sold out

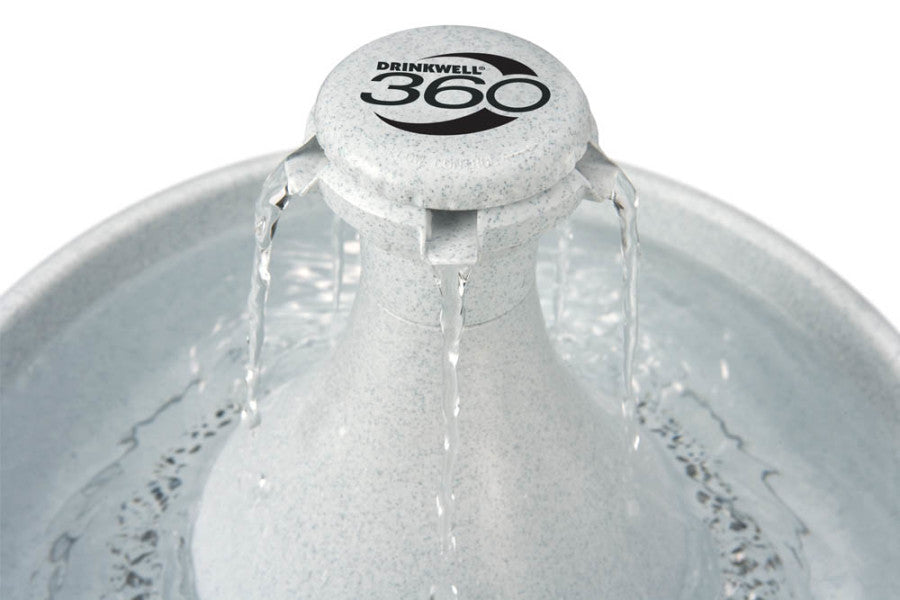

Developed by a Veterinarian, the Drinkwell 360 Pet Fountain provides 128 oz (1 gal) of fresh, filtered water to your pet. A patented free-falling stream of water entices your pet to drink more and continually aerates the water with healthful oxygen. A charcoal filter removes bad tastes and odors, giving your pet the best way to stay hydrated! This model features a 5-inch deep bowl to help prevent spills and a 1-gallon reservoir to increase capacity and make refills easy. Replaces SKU DOGC-RE.

Dimension

  • Dishwasher Safe: Top Rack Only
  • Product Gross Weight: 4.1250 lb
  • Product Net Weight: 4.1250 lb
  • Product Height: 8.00 in
  • Product Length: 14.00 in
  • Product Width: 14.00 in
  • Capacity: 128 oz
  • Environment: Indoor

Instruction

  • Assembly Required?: Yes
  • Use Instructions: 1. Remove the cone by twisting counter clockwise to unlock the tabs from the bowl. Lift up and set aside.2. Flip the bowl upside down and unhook the electrical cord from the two cord clips. Pull the cord through the cord pass-through in the bowl.3. Remove the intake tube from the pump by lifting up.4. Remove the pump from the bowl.5. Take the pump apart by first removing the faceplate. You may need to use a fingernail to pry it off.6. Remove the teardrop shaped stator by pulling up on the small lip.7. Use a fingernail to pull out the impeller, which is held in place magnetically.8. Rinse all fountain components (except for the adaptor) with warm water before using the pet fountain. This will remove any residue from the manufacturing process.9. Reassemble the fountain.10. Remove the flow control cap from the filter housing by lifting up. Gently lift up on the spout ring to access the filter housing cap.11. Unscrew the filter housing cap.12. Rinse the carbon filter under water and insert it into the housing with the pull-tab facing up.13. Screw on the filter housing cap.14. Align the side grooves of the housing with the inner notches of the cone opening.15. Turn housing clockwise until it locks in place.16. Place one of the five spout rings on top of the housing cap and press down to secure.17. Align the flow control cap with the raised notches on the housing cap. Press down and it will snap into place. Turn the cap to the right to increase the flow and turn left to decrease.18. Pick up the fountain by the bowl and place it in a desired location. Pour water into the bowl. Leave a ½ inch of space between the water level and the rim of the bowl.19. Make sure the electrical power cord, the adaptor and your hands are completely dry. Connect the in-line plug and make sure no silver is showing, then plug the adaptor into a standard electrical wall outlet.
  • Care and Cleaning Instructions: Note: Replace the carbon filter every two to four weeks and replace the foam filter every one to two months.1. Unplug the fountain, and disconnect the in-line plug.2. Pick up the pet fountain by the bowl, and take it to the sink.3. Disassemble the pet fountain and discard the carbon filter and the foam filter.4. You can use the motor brush from the Drinkwell® Cleaning Kit to clean inside the pump. Use a solution of 80% water and 20% white vinegar to remove hard water buildup.5. Wash all other parts with warm water and soap, or place in the top rack of the dishwasher.6. Reassemble pet fountain.NOTE: Do not place the adaptor or pump in the dishwasher.

Safety

  • Safety Warnings: When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:1. Read all instructions before using this product.2. To reduce the risk of injury, close supervision is necessary when an appliance is used by or near children.3. To protect against electric shock, do not place electrical power cord or plug in water or other liquids.4. Do not operate any appliance if it has a damaged electrical power cord or plug, or if it is malfunctioning or has been damaged. Call the Customer Care Center immediately for further instructions.5. To reduce the risk of electric shock, do not place or store an appliance where it can fall or be pulled into a bathtub or sink.6. Always unplug any appliance when not in use, before putting on or taking off parts and before cleaning.7. Do not use an appliance for anything other than its intended use.8. If the plug of this device gets wet, turn off the electricity to that electrical outlet. Do not attempt to unplug.9. Examine this appliance after installation. Do not plug into electrical outlet if there is water on the electrical power cord or plug.10. Do not allow pets to chew on or swallow any parts. If you are concerned your pet may chew the power cord, purchase a cord conduit (a hard plastic protector) at any hardware store.11. The plastic fountain parts are BPA-FREE. However, some animals have been known to be sensitive to plastic food and water containers. If your animal shows signs of an allergic reaction to the plastic, please discontinue use until you have consulted with your veterinarian.

Specifications

  • Filter Types: Carbon
  • Reservoir Included: Yes
  • Voltage: 12 Volts
  • Wattage: 2.5 Watts
