RADIO SYSTEMS CORPORATION

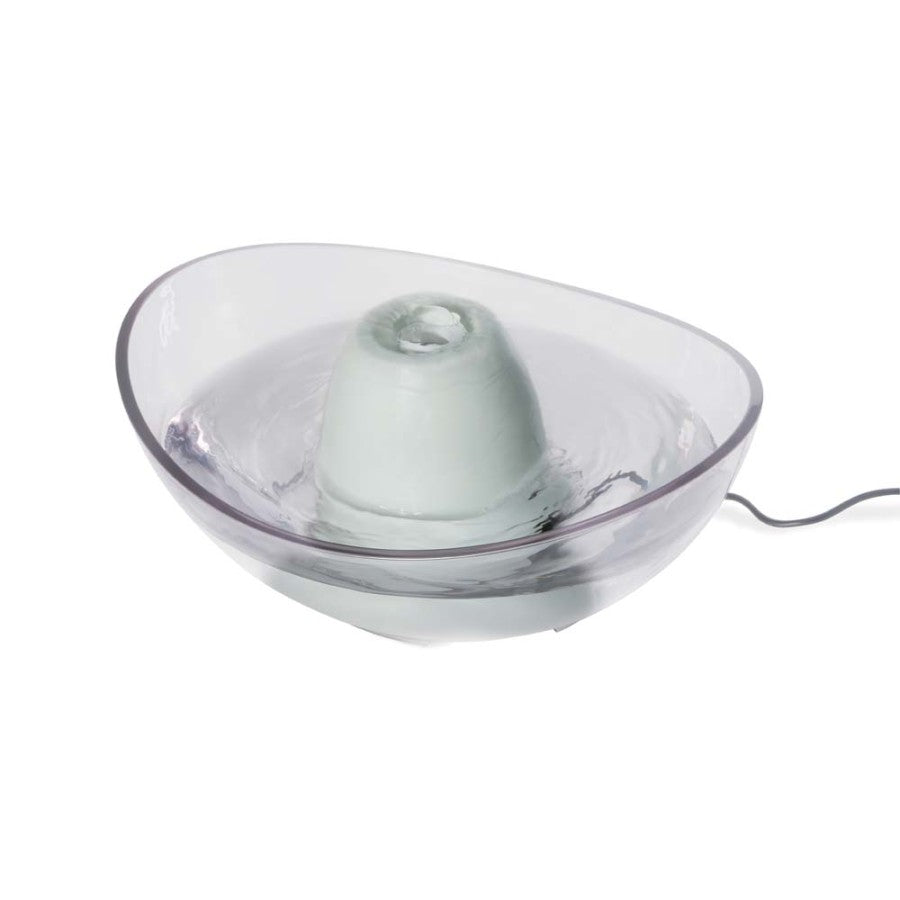

Drinkwell Sedona Pet Fountain

SKU: PT0137015417

Clear, White, 1ea

$0.50 USD
$0.00 USD $0.50 USD
Sale Sold out

With its cutting-edge design and 100 oz. water capacity, the Drinkwell Sedona Pet Fountain is ideal for large or multiple pets. The clear bowl design not only minimizes spills and splashes but also provides a large drinking area for pets with large or flat faces. The sound of the falling water is whisper-quiet making it easily approachable by apprehensive pets. It provides dual filtration including an activated carbon filter that removes bad tastes and odors, while a foam filter captures hair and debris. The Sedona Pet Fountain will clearly keep your pets healthy and hydrated while adding an elegant touch to your home decor.

Dimension

  • Dishwasher Safe: Top Rack Only
  • Product Gross Weight: 4.3390 lb
  • Product Net Weight: 4.3390 lb
  • Product Height: 7.48 in
  • Product Length: 11.81 in
  • Product Width: 14.45 in
  • Capacity: 100 oz
  • Environment: Indoor

Instruction

  • Assembly Required?: Yes
  • Assembly Instructions: Assemble Fountain: Rinse all fountain parts with warm water before operating the pet fountain. This will remove any dust or residue that remain in the system from the manufacturing process.1. Carefully remove all the fountain components from the packaging and set aside prior to assembly.2. As with any electrical device, check the electrical power cord for any tears or damage before use.3. Place the foam filter around the pump by inserting the pump into the foam filter from the top. Make sure the electrical power cord rests on top of thefoam filter.4. Take the bowl and place the pump inside the square indention. With the bowl positioned so the raised post is to the right of the square, make sure the pump is positioned so that the pump outflow, the circular opening on the top of the pump, is positioned in the bottom left corner of the square.5. Press down on the pump to engage the suction cups. Once the pump is securely in place, feed the in-line plug of the electrical power cord over and through the raised post and out the notch on the base of the bowl. 6. Remove the extra slack from the electrical power cord and insert the rubber cap into the raised post. Make sure the cord channel on the rubber cap is aligned with the electrical power cord, then insert your finger into the rubber cap and push all the way down.7. Fold the top of the rubber cap over the raised post to seal off the bowl.8. Rinse the carbon filter thoroughly under cool water before placing it into the filter housing. This will remove any loose carbon dust, which is harmless. A small amount of carbon dust may be released for the life of the filter. This is normal and is not harmful to your pet.9. Detach the lid from the base of the filter housing. Once rinsed off, place the carbon filter inside the base of the filter housing with the larger side of the filter facing down. The filter will only fit inside the base of the filter housing one way. If it does not fit, flip it over.10. Attach the lid to the base of the filter housing. Press down until you hear it snap in place.11. Attach the filter housing to the pump by inserting the round notch under the base into the circular opening on top of the pump. The opening on top of the filter housing should be right next to the sealed raised post.12. Place the ceramic tower inside the bowl. The rubber grommet will create a seal between the filter housing and the tower. Carefully lower the tower until it rests flat.Set Up and Add Water:1. Place the fountain in desired location. Do not pick up a full fountain by the tower piece. To properly pick up the fountain, use both hands and grip the sidewalls of the bowl and lift up.2. Fill the fountain by pouring water directly into the bowl. Leave at least ½ inch of space between the water level and the rim of the bowl to help control spills and splashing. To protect your floor always use a protective mat, such as a towel or water resistant placemat. This will help protect your floor from splashing or spills caused by your pet.3. Before you plug in the fountain, make sure the electrical power cord, the adapter and your hands are completely dry. Connect the in-line plug and make sure no silver is showing, then plug the adapter into a standard electrical wall outlet.4. Add water to the bowl as needed. Never let the water level fall below 1 inch from the base of the bowl or you might risk pump failure.
  • Care and Cleaning Instructions: Clean the fountain once a week.1. Unplug the fountain and disconnect the in-line plug.2. Carefully lift the tower and allow the water to slowly pour back into the bowl. Once all the water has been emptied into the bowl, set the tower aside for cleaning.3. Take the tower and turn upside down to remove the rubber grommet. Grab the rubber grommet from inside and pull straight out, set aside for cleaning.4. Remove the filter housing from the pump by lifting straight up.5. Open the filter housing and remove the carbon filter from inside and dispose. Set the lid and base of the filter housing aside for cleaning.6. Remove the rubber cap affixed to the raised post by inserting a finger under the lip and pull straight up to remove.7. While securely holding the electrical power cord and the bottom of the bowl with both hands, pour out the remaining water inside the bowl into a sink.8. With the in-line plug disconnected and water removed, grab the pump and lift straight up to disengage the suction cups. Continue pulling the pump’s electrical power cord up and out through the raised post in the center of the bowl. Once the pump is completely removed from the bowl, separate the foam filter and set aside for proper cleaning.9. Once the fountain is completely disassembled, you will have: the bowl, tower, two rubber pieces, the filter housing, foam filter and the pump.10. Rinse the foam filter with water only or replace it with a new one.11. See the “Pump Maintenance” section of this Operating Guide for detailed instructions on how to properly clean your pump. DO NOT PLACE PUMP IN DISHWASHER12. Hand wash all other fountain parts with warm water and soap. Be sure to rinse thoroughly with fresh water. You can also put the fountain in the top rack of the dishwasher. If possible, it is recommended that you turn down the heat of the water inside the dishwasher.

Safety

  • Safety Listing: UL-Listed
  • Safety Warnings: When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:1. To reduce the risk of injury, close supervision is necessary when an appliance is used by or near children. 2. To protect against electric shock, do not place electrical power cord or plug in water or other liquids.3. Do not use outdoors. Do not run dry. For indoor household use only. 4. Do not pull on the electrical power cord to remove the plug from the electrical outlet.5. To unplug, grasp the plug, not the electrical power cord.6. Do not operate any appliance if it has a damaged electrical power cord or plug, or if it is malfunctioning or has been damaged. Call Customer Care Center immediately for further instructions.7. For a portable appliance - To reduce the risk of electric shock, do not place or store an appliance where it can fall or be pulled into a bath tub or sink.8. Always unplug any appliance when not in use, before putting on or taking off parts and before cleaning.9. Do not use an appliance for anything other than its intended use.10. If the plug of this device gets wet, turn off the electricity to that electrical outlet. Do not attempt to unplug.11. Examine this appliance after installation. Do not plug into electrical outlet if there is water on the electrical power cord or plug.12. Always unplug any appliance when not in use, before putting on or taking off parts, and before cleaning. Never pull on the electrical power cord to remove the plug from the wall outlet. 13. Do not allow pets to chew on or swallow any parts. If you are concerned about the power cord, purchase a cord conduit (a hard plastic protector) at any hardware store.14. The plastic fountain parts are BPA-FREE. However, some animals have been known to be sensitive to plastic food and water containers. If your animal shows signs of an allergic reaction to the plastic, please discontinue use until you have consulted with your veterinarian.

Specifications

  • Cord Length: 66 Inches
  • Filter Types: Carbon
  • Voltage: 12 Volts
  • Wattage: 2 Watts
