RADIO SYSTEMS CORPORATION

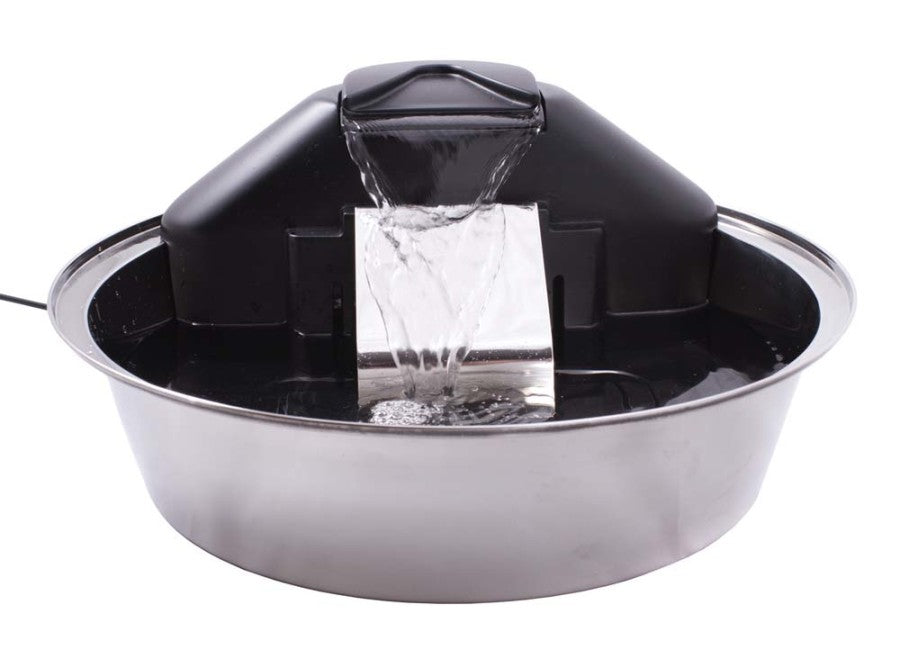

Drinkwell Zen Stainless Steel Fountain

SKU: PT0117182810

Silver, 1ea

$0.50 USD
$0.00 USD $0.50 USD
Sale Sold out

The new Drinkwell Zen Fountain offers your pet 1 gallon of fresh, filtered water in a stylish stainless steel bowl. A 3-layer charcoal filter removes bad tastes and odors from the water. The extra-wide, patented free-falling stream draws oxygen into the water, making it more appealing to drink from. Constant circulation of the water also inhibits bacterial growth between cleanings. The wide stainless steel drinking bowl is hygienic and easy to clean.

Dimension

  • Dishwasher Safe: Top Rack Only
  • Product Gross Weight: 3.1000 lb
  • Product Net Weight: 3.1000 lb
  • Product Height: 6.30 in
  • Product Length: 13.39 in
  • Product Width: 13.39 in
  • Capacity: 128 oz
  • Environment: Indoor

Instruction

  • Assembly Required?: Yes
  • Assembly Instructions: 1. Place the pump inside the bowl’s square indention with the circular opening on the pump positioned in the back left corner. Insert the pump tube into the opening on the pump and press down.2. With the pump in place, pass the cord through the opening at the back of the bowl. Feed the cord all the way through and push the rubber grommet into place to seal the hole. Be sure to leave enough slack in the cord so that the pump rests flat.3. Take a new filter and rinse under cold water to remove any excess charcoal dust. Insert the filter into the housing and make sure the black side is facing the pump.4. Reattach the stainless steel ramp by pressing back on the tab located directly underneath the spout. While holding the tab back, slide the ramp into the opening and release the tab once in place. Do not attach the ramp without the tab depressed, this will cause the tab to become locked into the wrong position and you will risk breaking this locking tab.5. Replace the housing by lowering straight down over the pump. Be sure the housing connects with the guide holes on the rim of the bowl. Push down to lock it in place.6. Assemble the two spout pieces. Press the two spout pieces together by aligning the top piece with the groove on the bottom piece. With the spout pieces together, press the spout into the opening on top of the housing until in locks in place Filter Slots.7. Place the fountain in a desired location. If placing on carpet, tile or wood flooring, use a protective mat or other durable, water resistant surface. This will help protect your floor from any splashing or spills caused by your pet.8. Make sure your hands, the cord and the adaptor are completely dry. Connect the inline plug to the adaptor and plug the fountain into an electrical outlet.
  • Use Instructions: 1. As with any electrical device, check the electrical cord for any tears or damage before use.2. Make sure the inline plug is fully connected.3. Locate the housing clips underneath the bowl rim and press inwards on the clips until you feel them release. Lift straight up on the housing to remove.4. Rinse the charcoal filter thoroughly in cold water. Turn the housing upside down and slide the filter inside the housing between the two angled slots. Make sure the filter is pushed all the way down and that the black side is facing the pump. 5. Make sure the pump is inside the bowl’s square indention and positioned with the pump tube in the back left corner. Gently press down on the tube to ensure it is secured to the pump.6. Replace the housing by lowering straight down over the pump. Be sure the housing connects with the guide holes on the rim of the bowl. Push down to lock it in place.7. Place the fountain in a desired location. If placing on carpet, tile or wood flooring, use a protective mat or other durable, water resistant surface. This will help protect your floor from any splashing or spills caused by your pet.8. Fill the fountain by pouring water directly into the bowl. We recommend leaving at least a 1/2” (1.27 cm) of space between the water level and the rim of the bowl.9. Before you plug in the fountain, make sure the cord, the adaptor and your hands are completely dry. Plug the fountain into an electrical outlet.10. Add water to the fountain as needed. Never let the water level fall below the MIN water line marked on the housing or you may riskburning out the pump. Replacement pumps are sold separately.
  • Care and Cleaning Instructions: Change Filter every 2 to 4 weeks. Clean Fountain once a week. Never wash the filter with soapy water. Clean the pump more frequently. Clean with regular white vinegar and let the vinegar soak for several minutes down inside the pump’s cavity.

Safety

  • Safety Warnings: When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:1. Read all the instructions before using the appliance. 2. To reduce the risk of injury, close supervision is necessary when an appliance is used near children. 3. To protect against electric shock, do not place cord or plug in water or other liquids. 4. Only use attachments recommended or sold by the manufacturer. 5. Do not use outdoors. For indoor household use only. 6. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. 7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been dropped or damaged in any manner. Call customer service immediately for further instructions. 8. For a portable appliance - To reduce the risk of electrical shock, do not place or store an appliance where it can fall or be pulled into a tub or sink. 9. Always unplug any appliance when not in use, before putting on or taking off parts and before cleaning. Never pull on the cord to remove the adaptor from the wall outlet. 10. Do not use an appliance for anything other than its intended use.

Specifications

  • Cord Length: 66 Inches
  • Filter Types: Carbon
  • Voltage: 12 Volts
  • Wattage: 2 Watts
