MILLER MANUFACTURING COMPANY

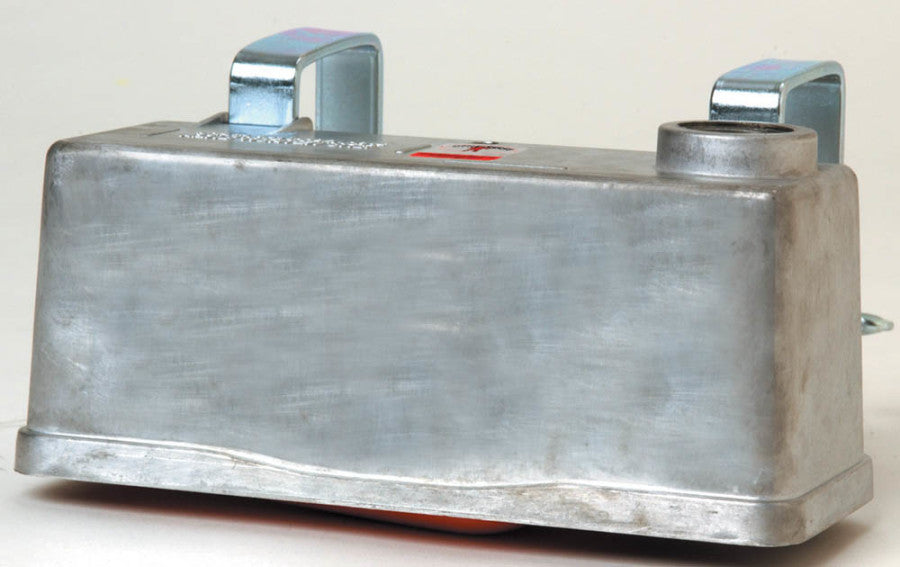

Little Giant Trough-O-Matic Stock Tank Float Valve with Aluminum Housing

SKU: PT0184200830

Grey, 1ea

$0.50 USD
$0.00 USD $0.50 USD
Sale Sold out

All metal float valves flow up to 245 gallons-per-hour and operate between 20-50 psi. Durable aluminum housing with nylon orifice.

Dimension

  • Product Gross Weight: 0.5500 lb
  • Product Net Weight: 0.5500 lb
  • Product Height: 6.00 in
  • Product Length: 3.00 in
  • Product Width: 2.00 in

Instruction

  • Use Instructions: 1. Familiarize yourself with all of the automatic float valve components.a. Open the loose parts bag and inventory the contents.b. The plastic orifice insert and hose washer is already assembled in the valve housing. Make sure the orifice insert and washer are firmly seated against the valve housing.c. The rubber valve seat is already pinned to the float. Make sure the seat and pin are firmly seated against the float.2. Position the float assembly inside the valve housing and slide the large 2-1/4” cotter pin through the housing and the float assembly (see Figure 1). Spread the ends of the large cotter pin open slightly with pliers. When properly installed, the float assembly should pivot freely on the cotter pin inside the valve housing.

Specifications

  • Compatible With: Stock Tanks, Troughs, Barrels, and Pans
