MILLER MANUFACTURING COMPANY

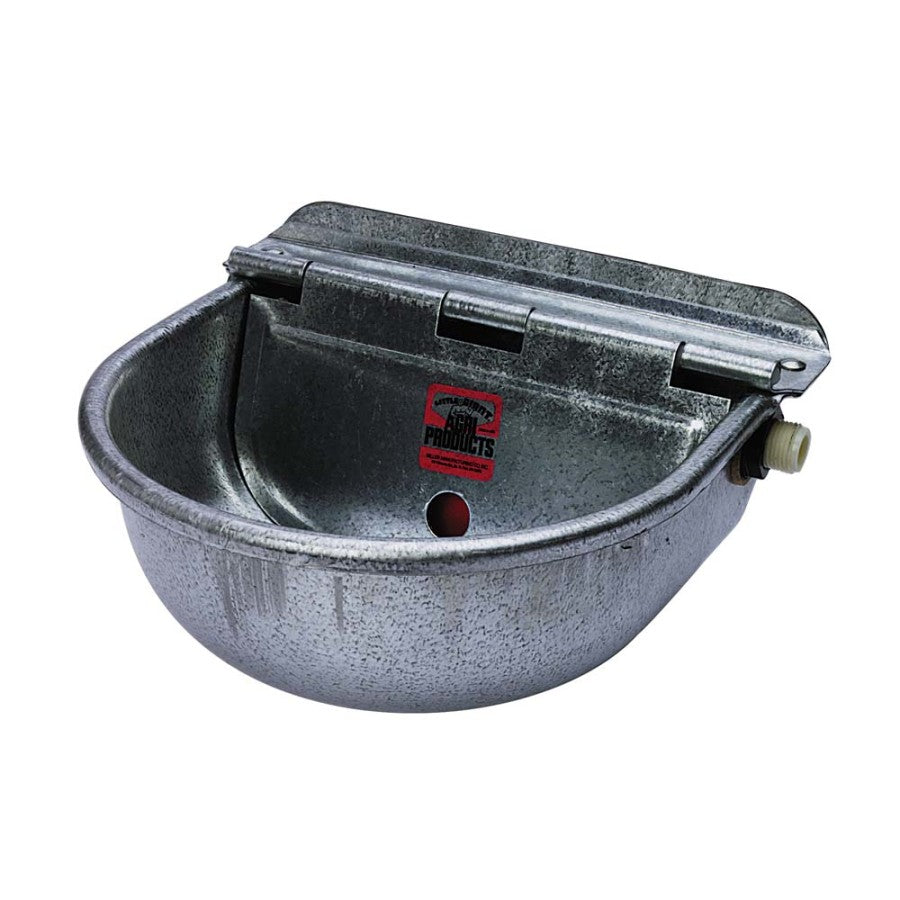

Miller Mfg. Galvanized Steel Automatic Stock Waterer

SKU: PT0193600088

Silver, 1ea

$0.50 USD
$0.00 USD $0.50 USD
Sale Sold out

This dependable, all-purpose automatic waterer is easy to connect to pipe, flex hose, or garden hose water supply. Works well for horses, cattle, hogs, goats, and other outside animals, with no special training required. Not intended for use inside a home. Safely operates between 20 and 50 pounds per square inch pressure. Constructed from heavy-gauge, prime-quality drawn, galvanized steel. Can be easily installed at any height using lag bolts or through bolts. Mounting plates are included but other mounting and water connection hardware are not included. Recommended mounting hardware to fence: two 3/8 inch diameter bolts or two 3/8 inch lag screws. Mounting to a wall: two 3/8 inch lag screws. Will fit a 1/2 inch pipe or hose with a left or right connection. Measures 10 inch long by 10.75 inch wide by 5.5 inch high.

Dimension

  • Product Gross Weight: 4.3000 lb
  • Product Net Weight: 4.3000 lb
  • Product Height: 9.00 in
  • Product Length: 8.00 in
  • Product Width: 3.00 in

Instruction

  • Assembly Required?: Yes
  • Assembly Instructions: The waterer is shipped with the float assembly installed on the right side of the waterer bowl. The float assembly can be installed on either side of the waterer to best suit your application. Carefully remove the square plastic plug and the mounting nut and fiber washer from the float assembly. Reinstall the float assembly on the left side and the square plastic plug on the right side of the waterer before proceeding.1. Mount the waterer to a flat rigid surface like a stall, fence, or post with the mounting surface (back) of the waterer bowl as vertical/plum as possible. For additional protection against damage from animals, mount the waterer near an inside corner if possible. The waterer must be properly mounted to a vertical surface. The waterer will not work properly laying on the ground.2. Remove the float pin and float/arm assembly from the waterer to gain access to the mounting holes.3. Use the water bowl to measure and mark the mounting holes at the desired mounting location.4. Drill a hole in each of the two (2) marked locations. a. If mounting the waterer with 3/8” lag screws, use a 1/4” dia. drill. b. If mounting the waterer with 3/8-16 through bolts, use a 13/32” dia. drill.5. Install the waterer. Always use the mounting plate provided.6. Tighten the lag screws or through bolts securely and reinstall the float/arm assembly and pin.7. Wrap all supply line pipe thread connections (including the threads on the valve) with Teflon thread sealing tape and connect the water supply to the float assembly. DO NOT overtighten any fitting or supply line connection.8. Check to make sure the waterer fills and shuts off properly.9. The water level is pre-set at the factory; however, minor adjustments can be made to increase or decrease the water level in the waterer if desired. To adjust the water level, remove float arm assembly by pulling out the connecting pin, loosen the float mounting screw and nut with a screwdriver, then rotate the float arm up or down to achieve desired water level. Make sure you retighten the mounting screw and nut securely.
  • Use Instructions: If the water flow does not stop1. Make sure water supply pressure is below 50 psi.2. Make sure float arm moves up and down freely without binding.3. Make sure float is not hitting the metal float cover when closed.4. Remove float pin and float arm assembly:a. Check for water inside the float. Replace SW23 float if necessary.b. Remove any debris from valve tip or valve seal and test.c. Replace SW8 seal and test. (An additional seal is provided on the side of the float arm)d. Check SW20 valve tip for chips, surface imperfections, or cracks. Replace valve if necessary.
  • Mounting Direction: Vertical
  • Mounting Options: Screw-On

Safety

  • Safety Warnings: Not intended for use inside a home. Rotating the arm too far up or failing to secure the float mounting screw and nut may prevent the waterer from stopping the water supply flow and run continuously.

Specifications

  • Hose Diameter: 0.5 Inches
  • Maximum Operating Pressure: 50 PSI
  • Automatic-refilling: Yes
  • Benefits: 1. No special training required2. Easily connects to 1/2 inch pipe, flex hose, or garden hose water supply3. Easily installed at any height
  • Minimum Operating Pressure: 20 PSI
