RADIO SYSTEMS CORPORATION

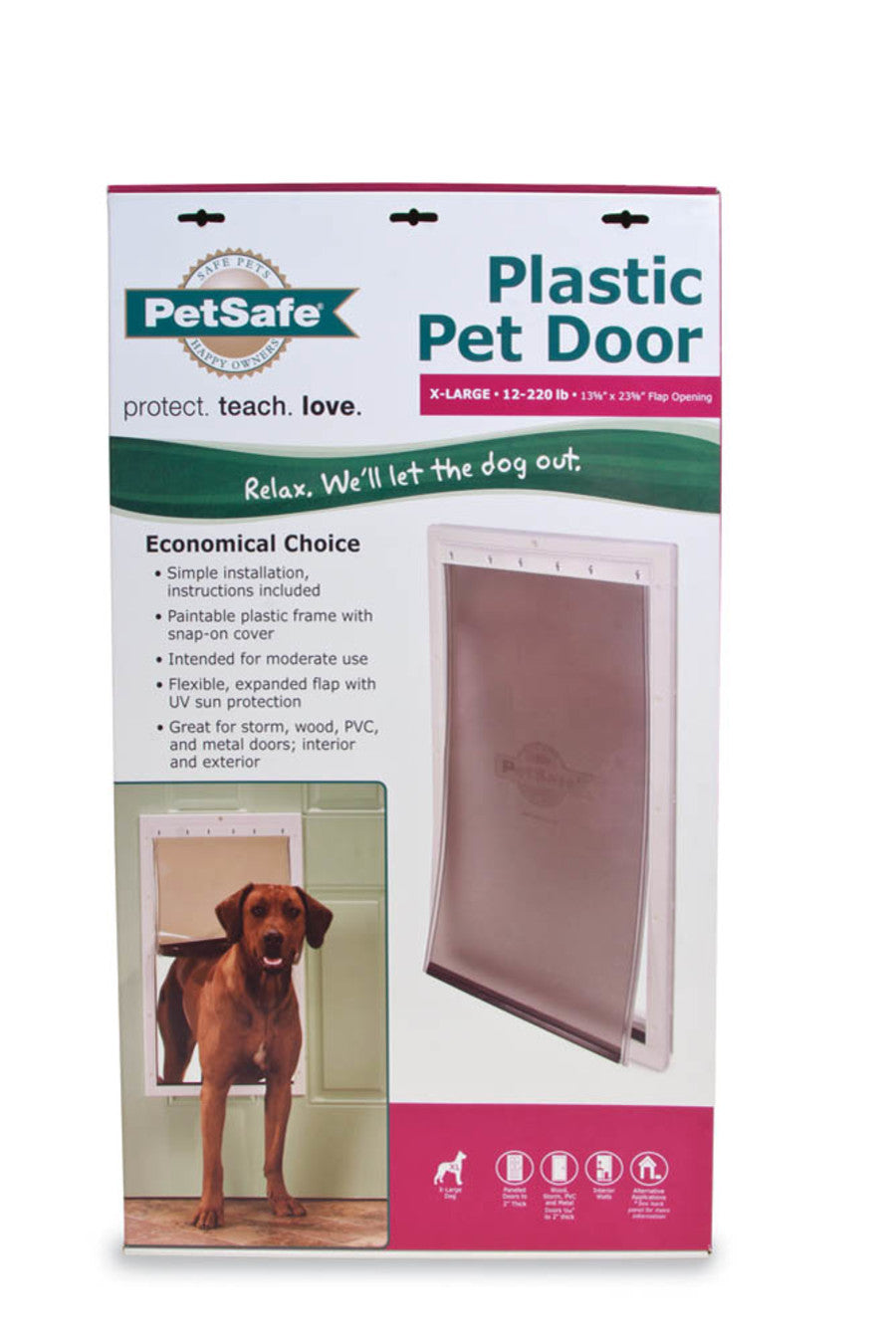

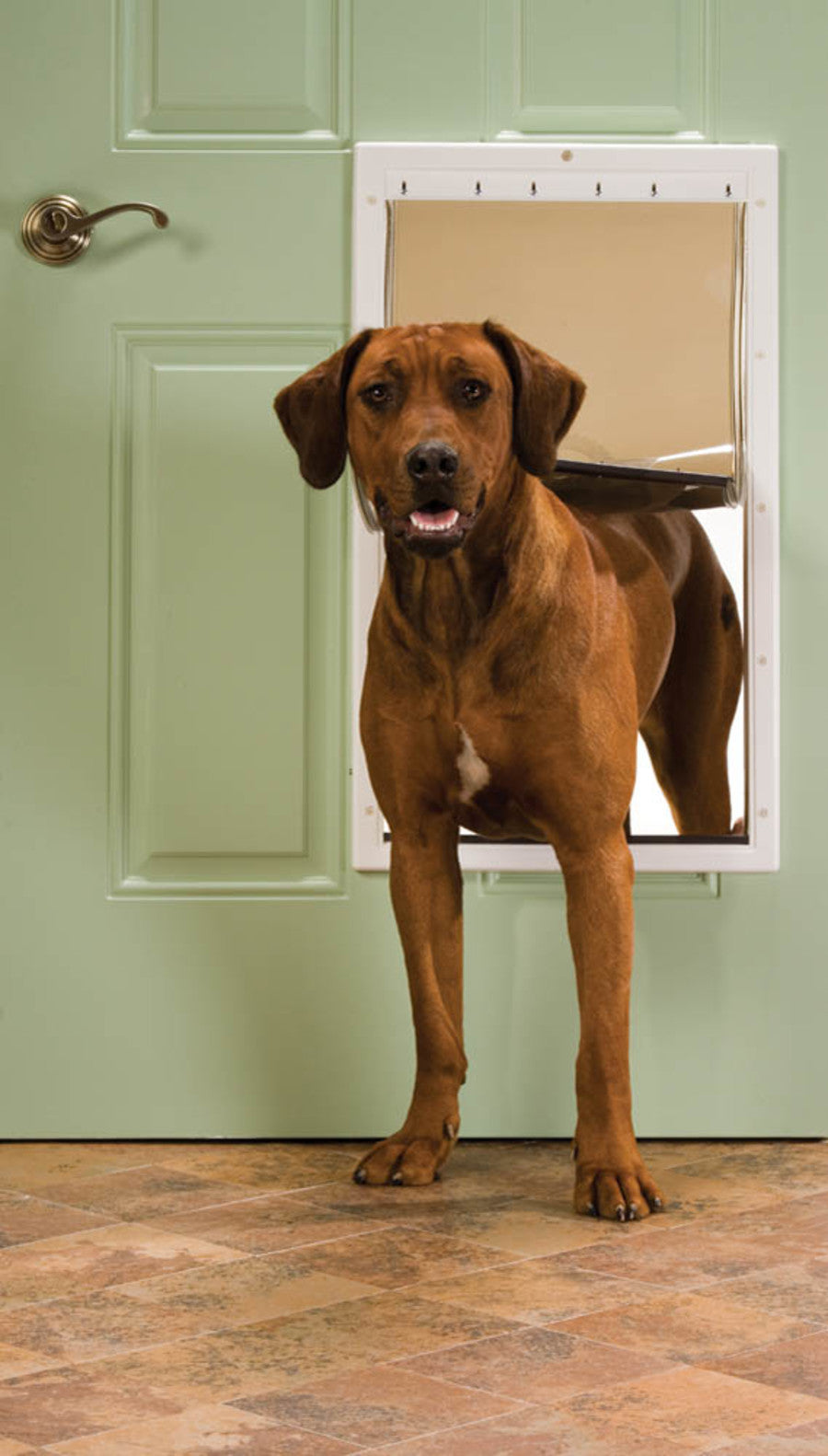

PetSafe Plastic Pet Door

SKU: PT0137010961

White, 1ea/XL

$0.50 USD
$0.00 USD $0.50 USD
Sale Sold out

A no-frills feedom for your pet. The doors are easy to install and offer strength and durability. Ideal for a pet home with moderate door use.

Dimension

  • Product Gross Weight: 7.5000 lb
  • Product Net Weight: 7.5000 lb
  • Product Height: 23.50 in
  • Product Length: 2.60 in
  • Product Width: 24.30 in

Instruction

  • Battery Required: No
  • Assembly Required?: Yes
  • Assembly Instructions: 1. Cut out correct template size.Note: If you have purchased an Extra Large Plastic Pet Door, no cutting is required.2. Measure & mark your pet’s shoulder height on door.3. Remove door (Optional)4. Match shoulder height line on door to the one on template. Draw line around the template. Remove template.Important: From bottom and hinged side of door should be no less than 3 to opening.5. Drill 3/8 holes in corners (saw blade pilot hole).6. Cut between holes using a jigsaw.7. Adjust Flaps if Necessary. Loosen screws, Pull up to adjust flap, Tighten screws.8. Measure the thickness (T) of your door.9. Cut the grooved side of plastic inserts to equal the thickness (T) of your door + 7/8.10. Place inserts in inside frame (frame with flap).Note: Corners of inserts may not touch.11. Fit outside frame into cut-out opening.• Place inside frame in cut-out opening.• Thread plastic screws through holes in frame. Secure with hex nuts (Do not overtighten).• Cut off excess screw with wire cutters.• Caulking is optional around frame.Note: If you have a raised panel door, after you have cut your opening, build up the low area with wood strips to make your surface even and support the frame.

Safety

  • Caution: The user, prior to installation, must become familiar with all building codes that may affect the installation of the pet door and determine, along with a licensed contractor, its suitability in a given installation. This pet door is not a fire door. It is important for the owner and contractor to consider any risks that may be present inside or outside of the pet door, and any risks that may be created by subsequent changes to your property and how they may relate to the existence and use, including misuse of the pet door.
  • Safety Warnings: When children are present in the home, it is important to consider the pet door during child proofing activities. The pet door may be misused by a child, resulting in the child accessing potential hazards that may be on the other side of the pet door. Purchasers/homeowners with swimming pools should ensure that the pet door is monitored at all times and that the swimming pool has adequate barriers to entry. If a new hazard is created inside or outside of your home which may be accessed through the pet door, Radio Systems® Corporation recommends that you properly guard access to the hazard or remove the pet door. The closing panel or lock, if applicable, is provided for aesthetic and energy efficiency purposes and is not intended as a security device. Radio Systems Corporation will not be liable for unintended use and the purchaser of this product accepts full responsibility for oversight of the opening it creates.

Specifications

  • Compatible With: Interior and exterior doors between 1/16 inches and 2 inches thick
  • Locking Mechanism: Yes
  • Locking System: Snap-on
  • Maximum Animal Weight: 220 Pounds
  • Opening Height: 23.75 Inches
  • Opening Width: 13.75 Inches
